機油泵

John Deere約翰迪爾強鹿柴油發動機機油泵配件銷售維修維護技術零件資料手冊

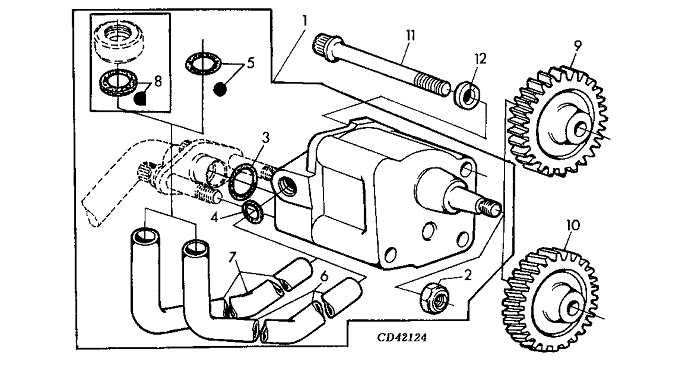

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 RE52020 KIT 1 X

2 14H826 NUT 1 X 1/2"-13UNC

3 R61871 O-RING 1 X

4 R74354 O-RING 1 X

5 R97185 O-RING AR X

6 R113752 OIL TUBE NA X W/ COLOR MARK

7 R115280 OIL TUBE 1 X APPL

8 R75892 O-RING AR X

9 .................. SPUR GEAR NA X Z = 33

10 T20298 HELICAL GEAR 1 X Z = 33

11 R57059 CAP SCREW 1 X LGTH 70MM

12 12H304 LOCK WASHER 1 X 3/8"

9700-
