曲軸瓦

John Deere約翰迪爾強鹿柴油發動機曲軸瓦配件銷售維修維護技術零件資料手冊

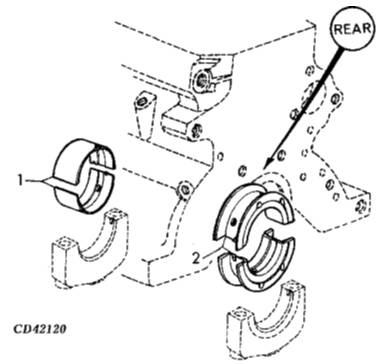

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 AT21140 BEARING 4 X (KIT (2) T23214) STD

.................. BEARING AR X (A) US -0.254MM, MARKED T23554, ORD RE27353

2 AT21139 BEARING 1 X (KIT (2) T23215) STD, REAR

.................. BEARING AR X (A) US -0.254MM, REAR,MARKED T23576, ORD

RE27351 AND RE13571

(A) GRINDING GUIDELINE : CTM3274
