風扇張緊輪

John Deere約翰迪爾強鹿柴油發動機風扇張緊輪配件銷售維修維護技術零件資料手冊

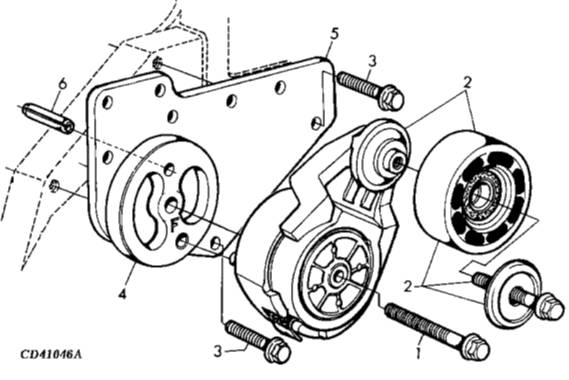

KEY PART NO. PART NAME QTY SERIAL NO. H H REMARKS

1 19M8131 SCREW 1 X X M10 X 70, (10.9)

2 RE70536 SHEAVE 1 X X

3 19M7801 SCREW 2 X X M8 X 60, (10.9)

4 R500321 SPACER 1 X X

5 R132168 SUPPORT 1 X X

6 34M7061 SPRING PIN 1 X X 8 X 20 MM
